| d1 | d2 max | t min* | s |
| M2 | 1 | 0.8 | 1 |
| M2.5 | 1.2 | 1.2 | 1 |
| M3 | 1.4 | 1.2 | 2 |
| M4 | 2 | 1.5 | 2 |
| M5 | 2.5 | 2 | 3 |
| M6 | 3 | 2 | 3 |
| M8 | 5 | 3 | 4 |
| M10 | 6 | 6 | 5 |
| M12 | 8 | 8 | 6 |
| M14 | 9 | 9 | 6 |
| M16 | 10 | 10 | 8 |
| M20 | 14 | 12 | 10 |
| M24 | 16 | 15 | 12 |

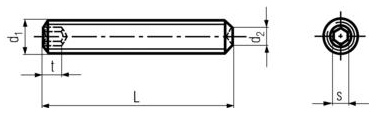

DIN 916 - Socket Set Screws With Cup Point Specifications
DIN 916 - Socket Set Screws With Cup Point Specifications
*All measurements in millimeters (mm)*
All information is strictly informative
MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 317L, 309, 310, 904L, SUS-630, UB-6, B8, B7
