DIN 196 Flange Nuts Specifications

DIN 196 Flange Nuts Specifications

DIN 196 Flange Nuts Specifications


*All measurements in millimeters (mm)*

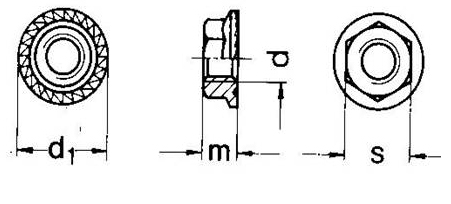

d d1 s m
M5 11.2 8 4.3
M6 14.25 10 5.5
M8 18.25 13 7
M10 21 15 7.9
M12 24 17 8.7
M16 31 22 11.5

All information is strictly informative

MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL - 600, INCONAL-800, ALLY - 625, ALLOY-825, SUS-630, UB-6, B8, B7, TITANIUM, HAST-ALLOY, ALLOY-20
