| d1 | d2 | k max. | Phillips | m approx. | t | Proof Load N | |
| min. | max. | ||||||
| M2 | 3.8 | 1.2 | 1 | 2.35 | 0.95 | 1.25 | 600 |
| M2.5 | 4.7 | 1.5 | 1 | 2.7 | 1.25 | 1.55 | 990 |
| M3 | 5.6 | 1.65 | 1 | 2.9 | 1.5 | 1.8 | 1560 |
| M3.5 | 6.5 | 1.93 | 2 | 3.9 | 1.4 | 1.9 | 2100 |
| M4 | 7.5 | 2.2 | 2 | 4.4 | 1.9 | 2.4 | 2720 |
| M5 | 9.2 | 2.5 | 2 | 4.6 | 2.1 | 2.6 | 4400 |
| M6 | 11 | 3 | 3 | 6.6 | 2.8 | 3.3 | 6230 |
| M8 | 14.5 | 4 | 4 | 8.7 | 3.9 | 4.4 | 11400 |

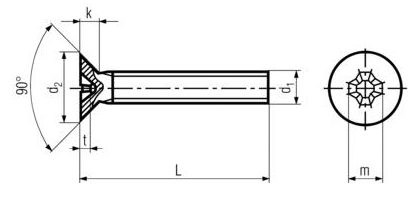

DIN 965 - Philips Flat Head CSK Machine Screws Specifications
DIN 965 - Philips Flat Head CSK Machine Screws Specifications
*All measurements in millimeters (mm)*
