Hex Fitting Bolts w/long Threaded Portion, Mumbai, India

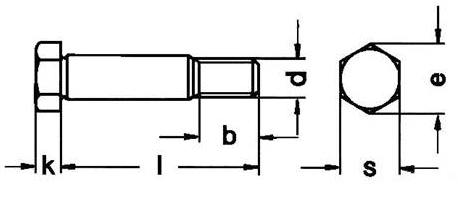

DIN 609 - Hex Fitting Bolts w/long Threaded Portion Specifications

*All measurements in millimeters (mm)*

d	k	e	s	b = to 50	b = to 150	b = to 200
M8	5.3	14.4	13	14.5	16.5	21.5
M10	6.4	17.8	16	17.5	19.5	24.5
M12	7.5	19.9	18	20.5	22.5	27.5
M14	8.8	22.8	21	22	24	29
M16	10	26.2	24	25	27	32
M20	13	33	30	28.5	30.5	35.5
M24	15	39.6	36	-	36.5	41.5
M30	19	50.9	46	-	43	48

All information is strictly informative

MATRIAL : STAINLESS STEEL 304,304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL -600, INCONAL-800, ALLY -625, ALLOY-825, SUS-630, UB-6,B8,B7,TITANIUM, HAST-ALLOY, ALLOY-20
