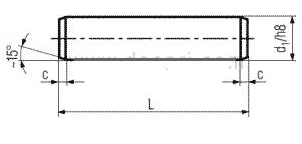

DIN 7 & ISO 2338 - Dowel Pins Specifications

DIN 7 & ISO 2338 - Dowel Pins Specifications

DIN 7 & ISO 2338 - Dowel Pins Specifications


*All measurements in millimeters (mm)*

d1 c approx.
M1 0.2
M1.2 0.25
M1.5 0.3
M2 0.35
M2.5 0.4
M3 0.5
M4 0.63
M5 0.8
M6 1.2
M8 1.6
M10 2
M12 2.5
M16 3
M20 3.5

All information is strictly informative

MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL - 600, INCONAL - 800, ALLY - 625, ALLOY-825, SUS-630, UB-6, B8, B7, TITANIUM, HAST-ALLOY, ALLOY-20
